Concrete Pumps

Boom pumps

ECP28ZX


product Reference

Catalogue
Working Diagram

-

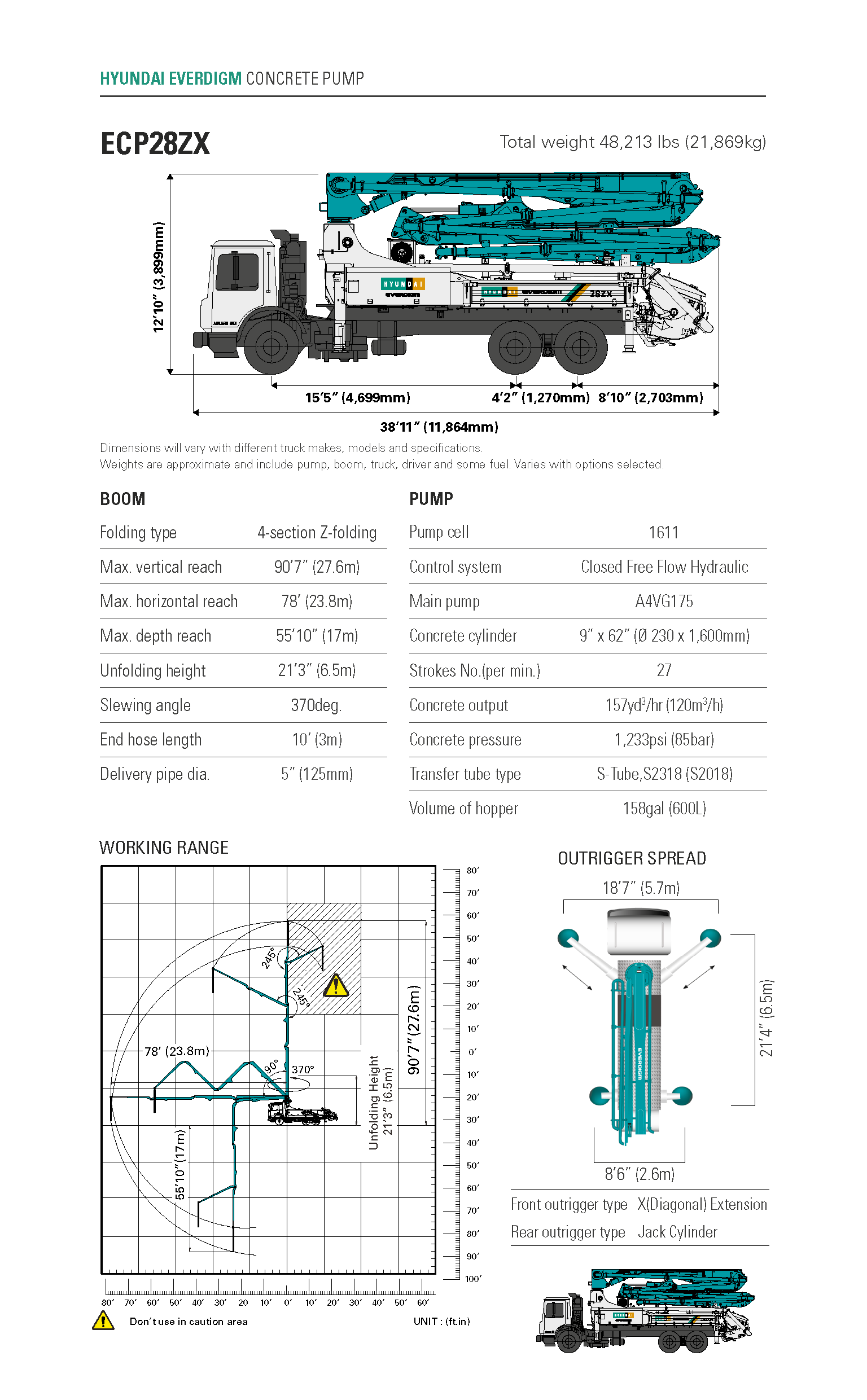

Spec Sheet

-

  • everdigm concrete pump_28zx_main00.jpg
  • everdigm concrete pump_28zx_main01.jpg
  • Boom pumps

    Truck-Mounted Concrete Pumps



    FFH SYSTEM

    Intelligent control system switches the direction of oil flows, allowing oil to freely flow without passing through any unnecessary valves.



    ■ The oil flows in a closed circuit from the Rexroth pump to the hydraulic cylinders and returns to the pump directly, which allows higher performance and efficiency.
    ■ Our intelligent control system switches the direction of the oil flow,
    allowing oil to flow freely.
    ■ Direct return of the oil to the pump prevents contamination of the hydraulic system






    PUMP CELL

    Various pump cell option suitable for each job site condition.







    Pump cell

    Max.output

    (m³/h)

    Max.pressure

    (bar)

    Stroke

    (mm)

    Cylinder dia.

    (mm)

    Strokes

    (per min)

    Applicable models



    1208

    81

    71

    1200

    200

    36

    21m



    1409

    90

    70

    1400

    200

    35

    24-28m



    1609

    90

    70

    1600

    200

    25

    30m



    1611

    110

    85

    1600

    230

    27

    28-30m



    2114

    140

    70

    2100

    230

    26

    32-43m



    2116

    160

    85

    2100

    230

    30

    32-56m



    2516

    160

    85

    250

    230

    25

    63m























  • 28Meter 4section Z-Boom

    Truck-Mounted Concrete Pumps





    QUOTATION DIAGRAM

    Dimensions will vary with different truck makes, models and specifications. Varies with options selected.

    Based on Model MACK MRU 613 with 2116 pump cell. Weights are approximate and include pump, boom, truck, driver and full fuel.


    Z-Boom Unfolding Video






    ​RANGE DIAGRAM









    OUTRIGGER SPREAD
